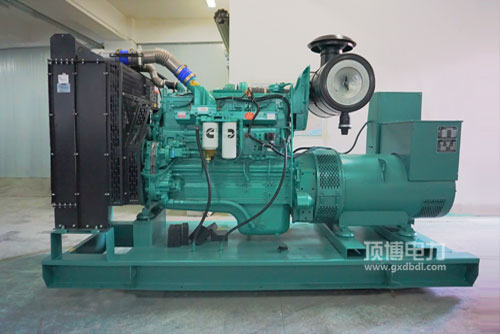

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯发电量用打火机汽柴油实惠性好: 优秀的汽柴油调控系统软件，代表性的STC、ESTC 划分调控系统软件，特殊的设定的连杆顶部点燃室，各类高压喷射式汽柴油，积极主动雾化吸入，点燃积极主动。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯发电厂用启主观因素瞬态特性优良: 精致的启主观因素整体风格开发，互相配合康明斯个性的EFC装置，管理导致精性强，出错日子快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯来发电用打着机升最大功率高: 产品方案宽敞.造型摆置合理性，电脑运行市场平稳。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷智能机型 QSNT. QSK19. QSK38. QSK50足够国内 非的道路然后第一阶段及北美洲Tier2. Tier 3进行排放法律法规需求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件必须性好， 发起机进行及维系护肤保养生活便利，成本投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

功效依据 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外表尽寸 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品质量 Dry Weight   940kg

224-310KW康明斯发电站用打火机的优点和缺点：质量小， 解压缩比较高， 喷淋喷嘴暖空气供暖，最易通电，走动车载一体机电源开关的好选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机类型	较常用耗油率(kW)Prime Power	应急额定功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
